Specification | Parameter | |
Screen | size | 15.6-inch |

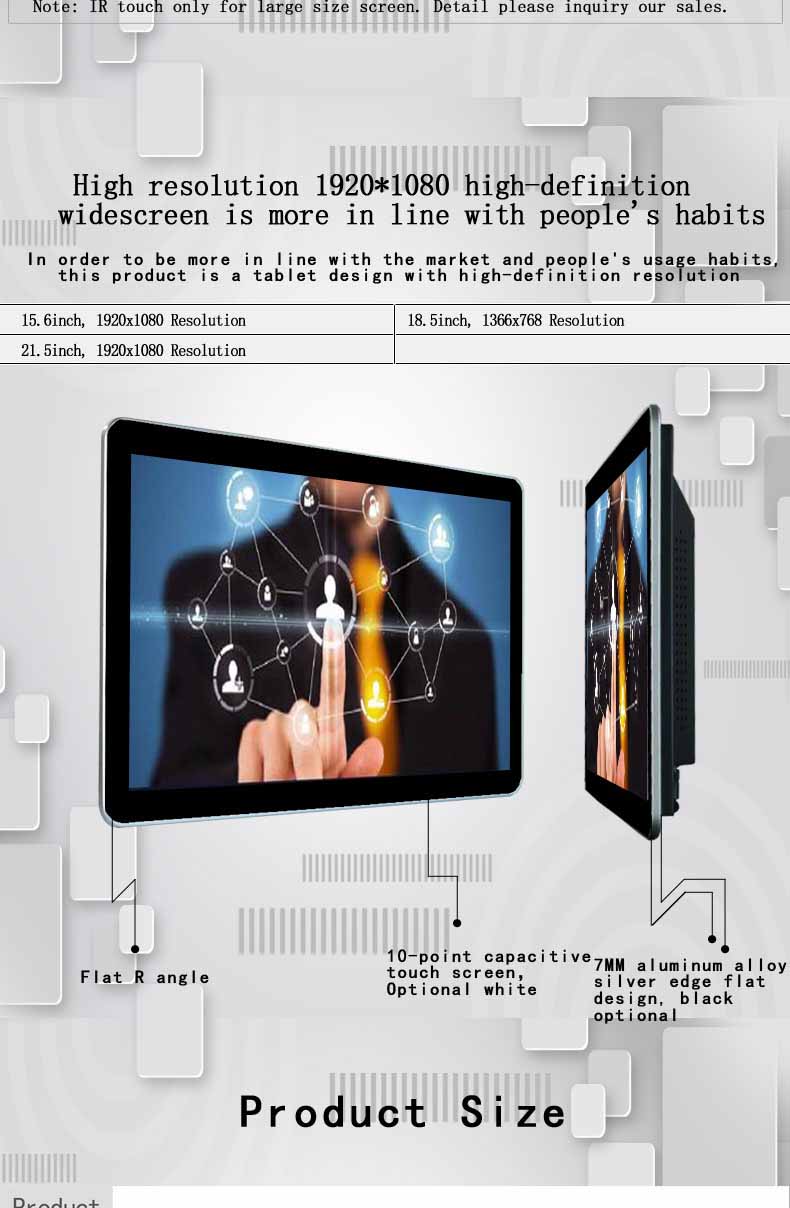

Resolution | 1920×1080 | |
screen brightness | 300cd/m2 | |

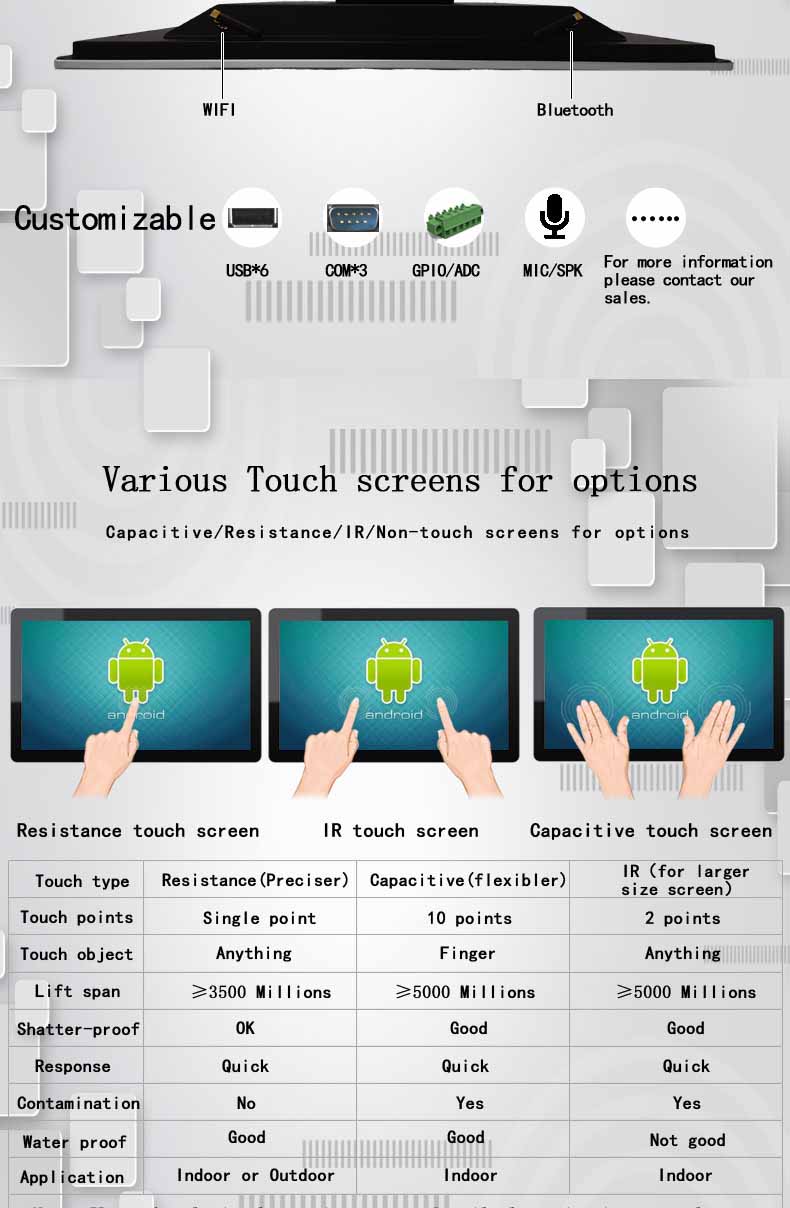

Capacitive touch | Surface hardness | 6H |
Number of contacts | 10 point | |
Trumpet | Built-in empty | 2W+2W/8Ω; |
Hardware |
CPU | RK3288 super quad core Cortex-A17 frequency up to 1.8GHz |
GPU | ARM Mali-T764 GPU supporting TE ASTC AFBC memory compression technology | |
Image processing | Supports OPENGL ES1.1/2.0/3.0 OPEN VG1.1 OPENCL Directx11 | |
em |
||
Support 4K H.265 hard decoding 10bits color depth HDMI2.0 | ||
Support 1080P multi format video decoding 1080P video coding support H 264 VP8 and MVC image enhancement processing | ||
Geomerics Enlighten's global real-time optical engine | ||
Hardware improves display effect under low power consumption | ||
Display | Up to 3840X2160 resolution display and HDMI2.0 output | |
Security | Hardware security system supporting HDCP 2. X | |
ROM | 4GB DDR3 | |
RAM | 128G EMMC | |

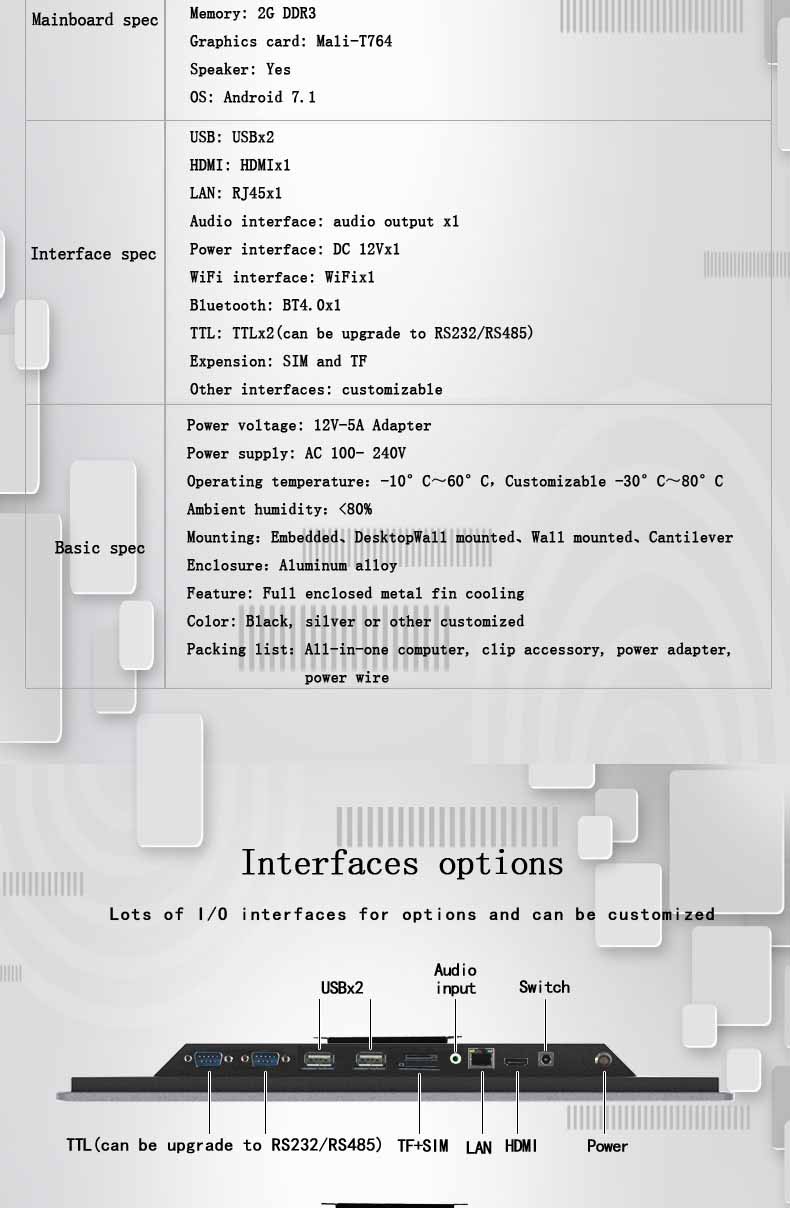

IO |
LAN |
1-way RJ45 network port WiFi |
Audio | Line out*1 | |
USB |
USB OTG/HOST*1 USB HOST*1 |
|
Display interface | HDMI | |
Expand interface | TF card slot | |
Other | working environment |
Working temperature: -10~60℃; Working humidity: 5%~95% relative temperature no condensation |
storage environment |
Storage temperature: -20~60℃; Storage humidity: 5%~95% relative temperature no condensation |
|
Power on | Supports power-on timed-on and remote power-on/off settings | |

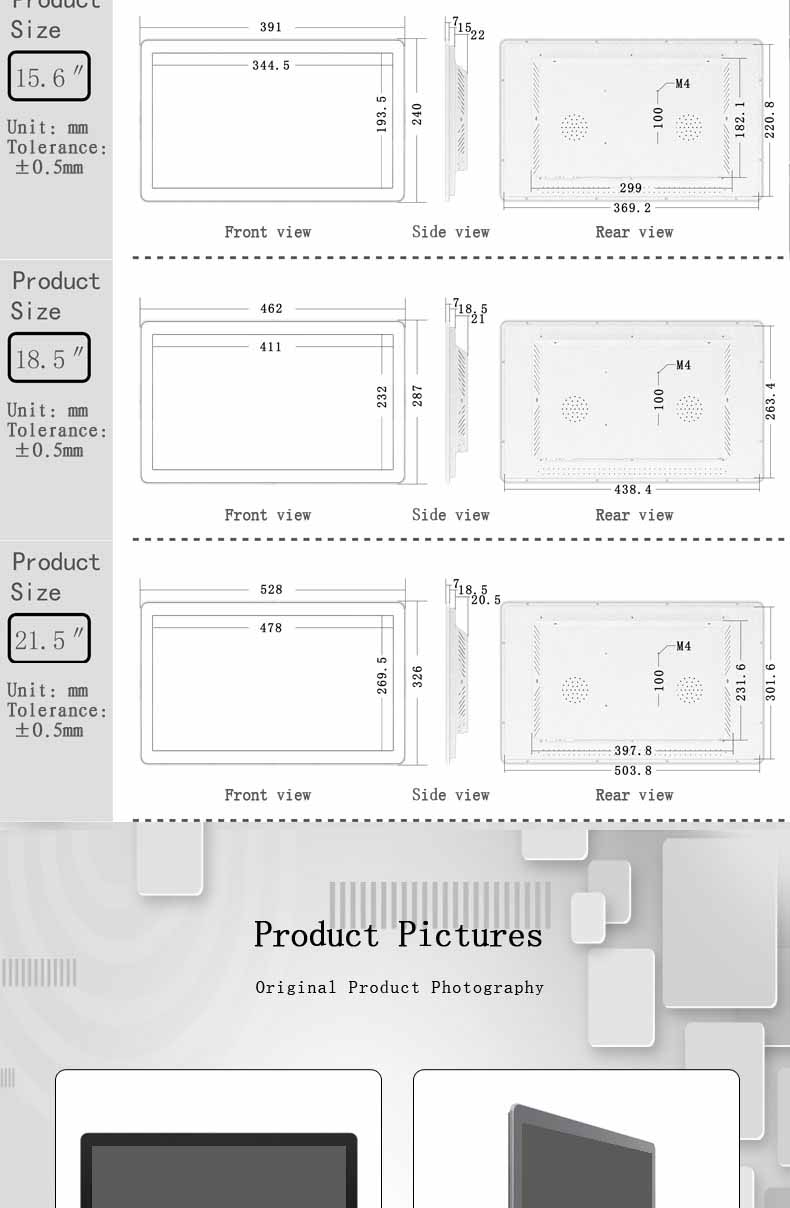

Size | As shown below | |
Protection class | Complete machine waterproof | |
Power supply | DC12V(±10%) | |
OS | Android 11 | |

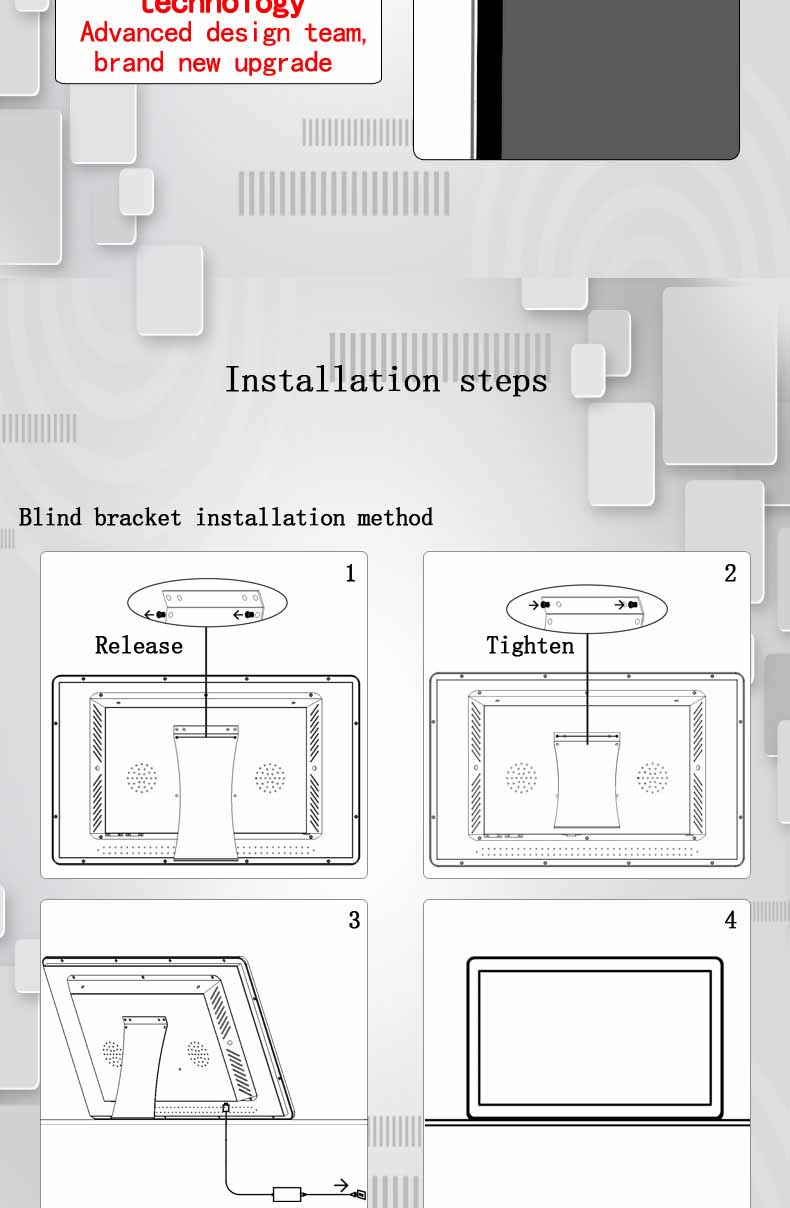

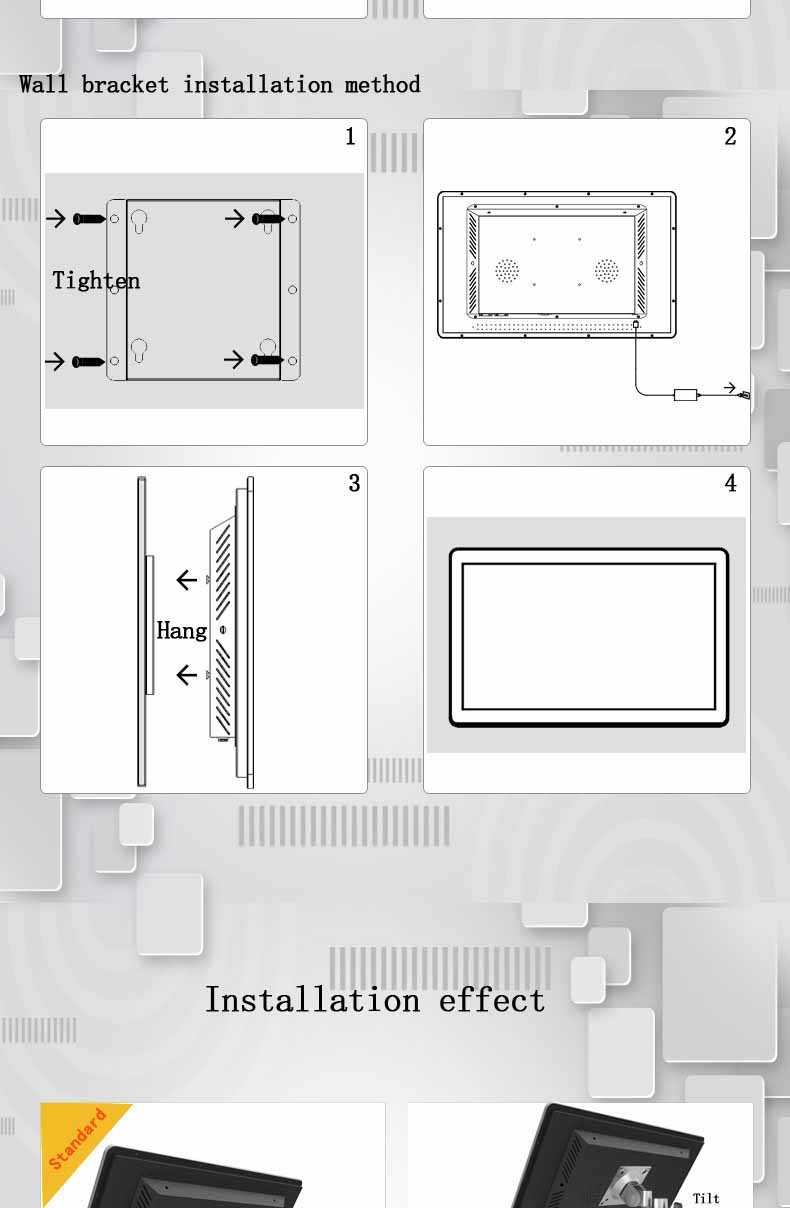

Installation method | wall-mounted desktop | |
Packing List | Machine*1 Power Adapter*1 Power Cord*1 Instruction Manual*1 Certificate*1 |
