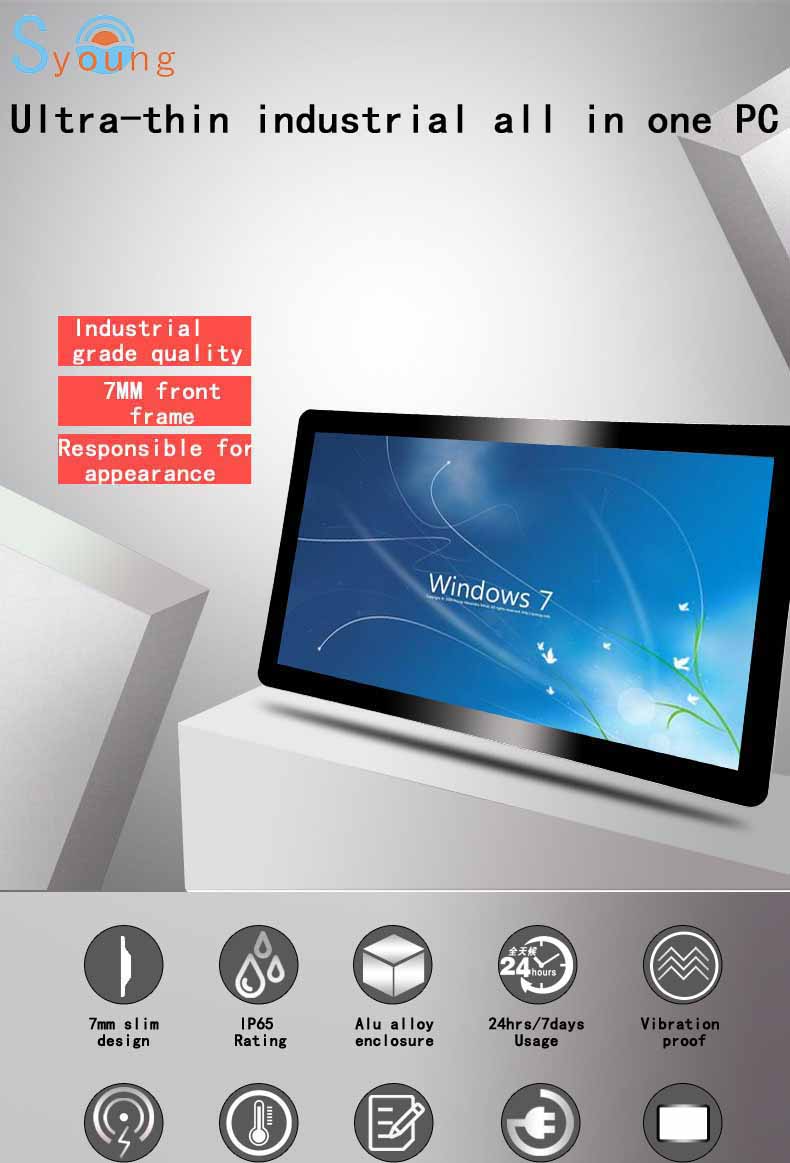

![SyoungUltra-thin industrial all in one PCIndustrial grade quality7MM front fr<x>ameResponsible for appearance7mm slim designIP65 RatingAlu alloy enclosure24hrs/7days UsageVbration proof](/uploads/allimg/21070103/1.jpg)
![](/uploads/allimg/21070103/2.jpg)
![](/uploads/allimg/21070103/3.jpg)
![](/uploads/allimg/21070103/4.jpg)
![](/uploads/allimg/21070103/5.jpg)
![](/uploads/allimg/21070103/6.jpg)
![](/uploads/allimg/21070103/7.jpg)
![](/uploads/allimg/21070103/8.jpg)
![](/uploads/allimg/21070103/9.jpg)
![](/uploads/allimg/21070103/10.jpg)
![](/uploads/allimg/21070103/11.jpg)
![](/uploads/allimg/21070103/12.jpg)
![](/uploads/allimg/21070103/13.jpg)
![](/uploads/allimg/21070103/14.jpg)
![](/uploads/allimg/21070103/15.jpg)
![](/uploads/allimg/21070103/16.jpg)
![](/uploads/allimg/21070103/17.jpg)
![](/uploads/allimg/21070103/18.jpg)
![](/uploads/allimg/21070103/19.jpg)
![](/uploads/allimg/21070103/20.jpg)
Mold visual monitoring industrial all-in-one machine 4 POE Gigabit Ethernet port output visual product full inspection machine

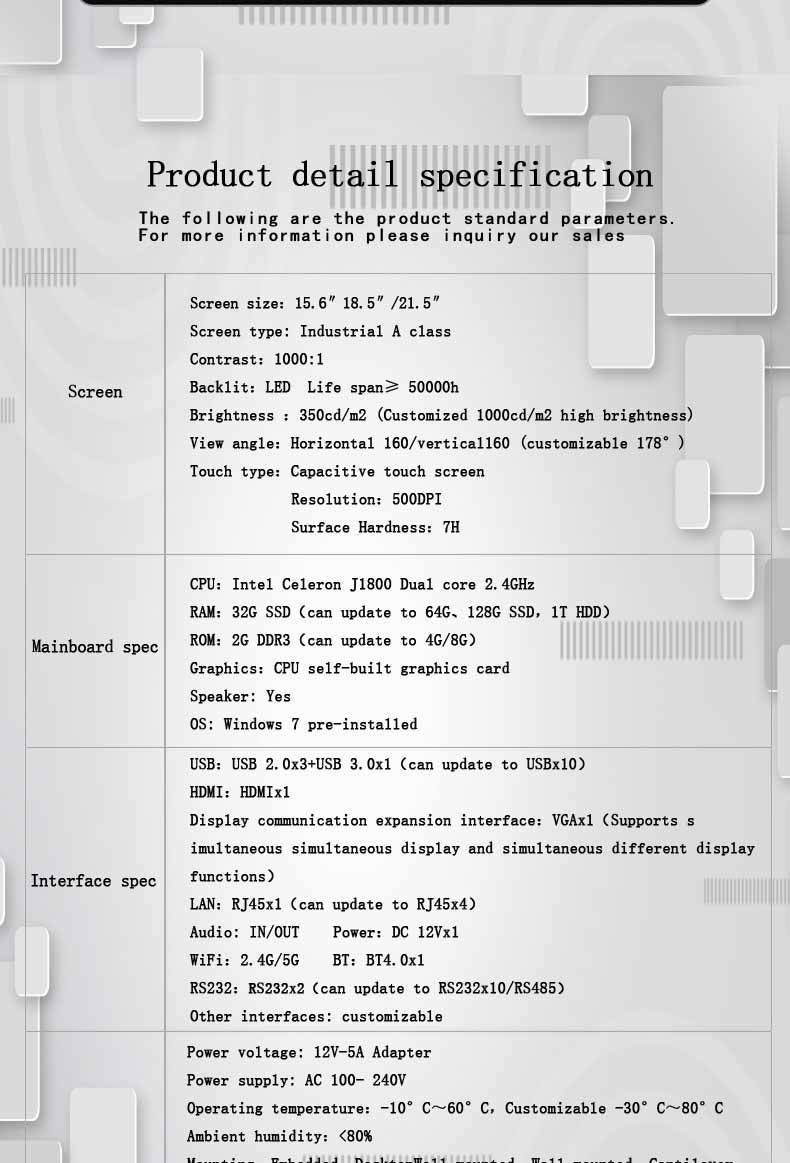

Specification | Parameter | |

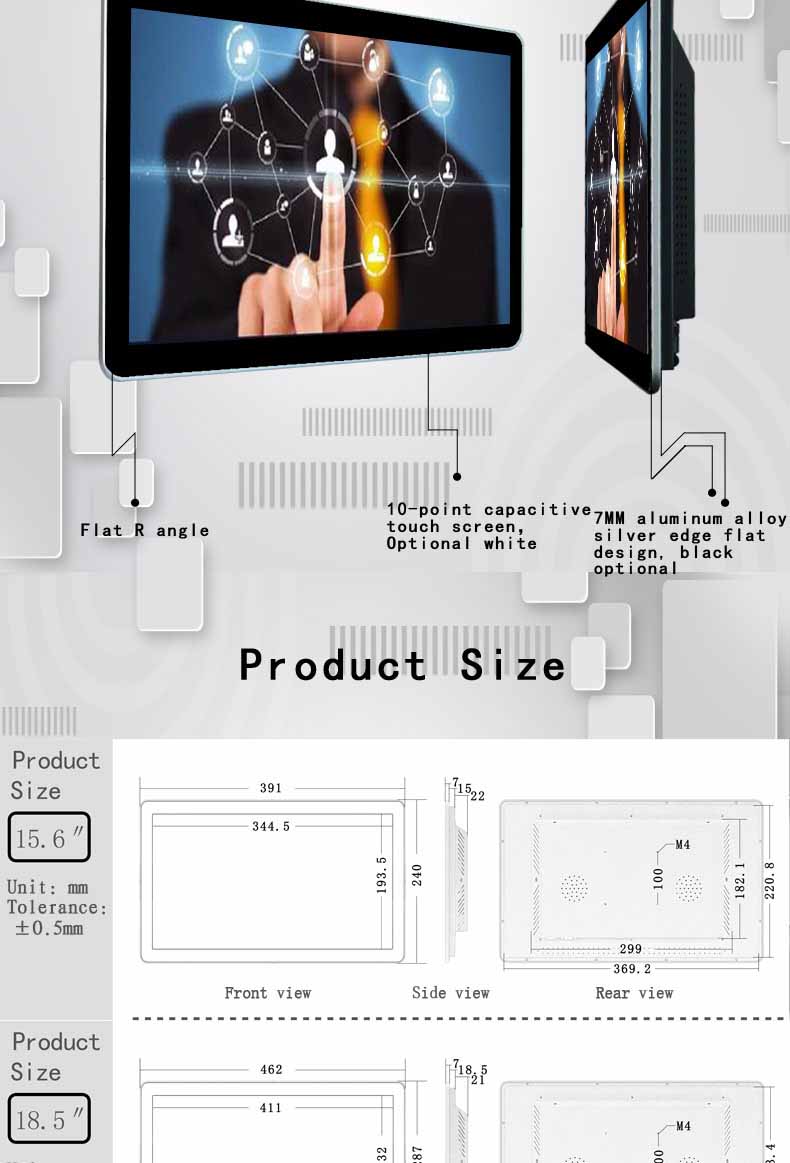

Screen | size | 15.6¨ |
Resolution | 1920×1080 | |
screen brightness | 300cd/m2 | |

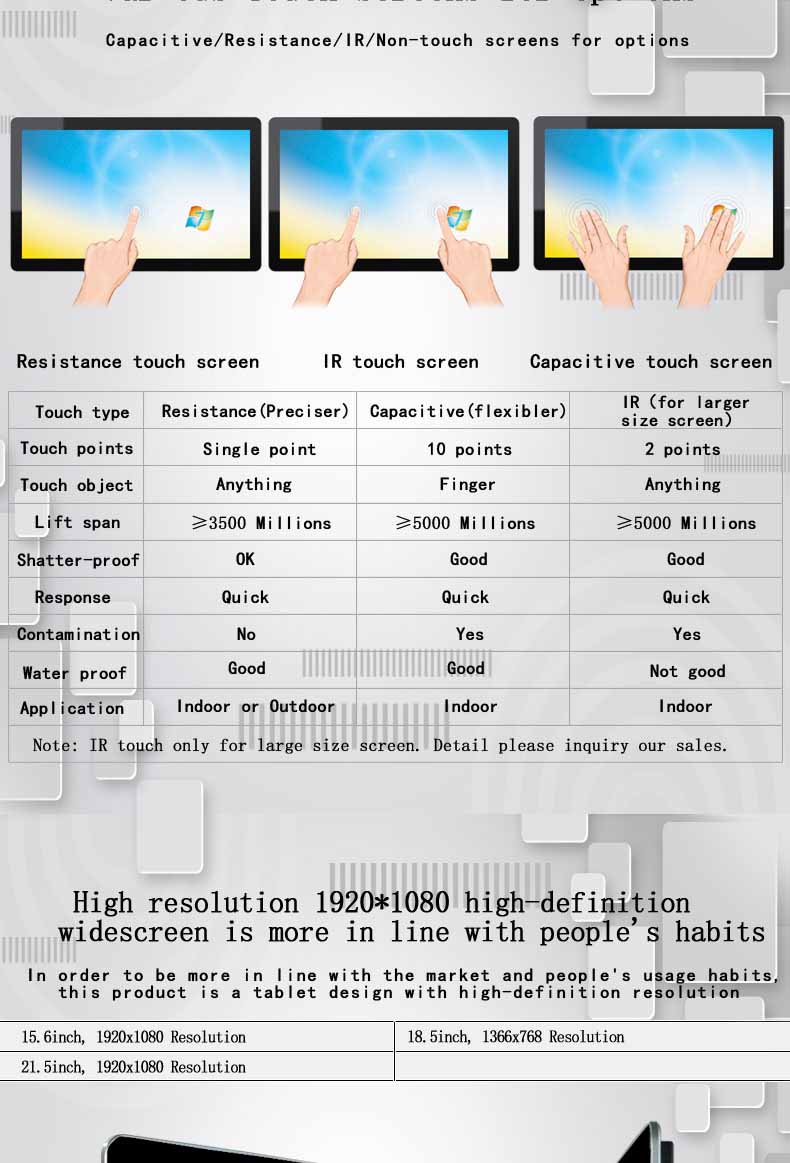

Capacitive touch | Surface hardness | 6H |
Number of contacts | 10 point | |
Trumpet | Built-in empty | 2W+2W/8Ω; |
Hardware |

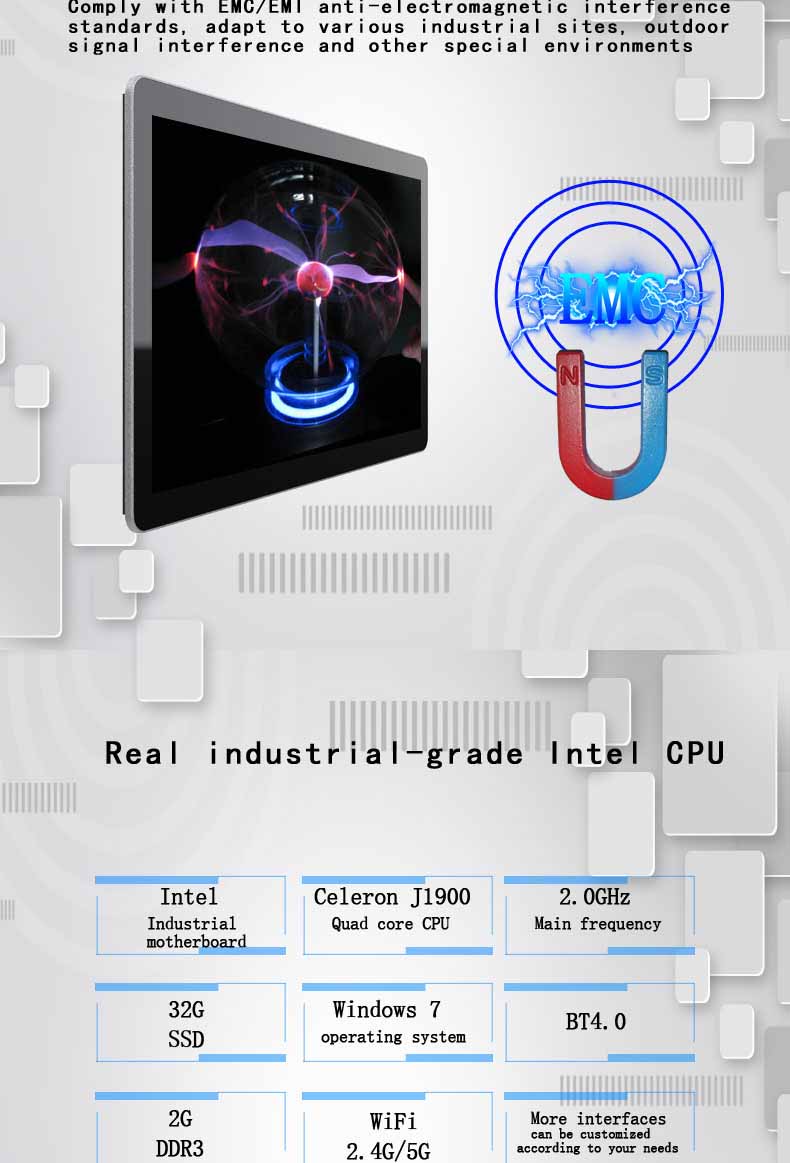

CPU | Intel Celeron J1900 quad core 2.0GHz |
chipset | Intel Bay trail SOC | |
GPU | Intel HD Graphics(Sandy Bridge) | |
ROM | 2GB DDR3 | |
RAM | 64G SSD | |

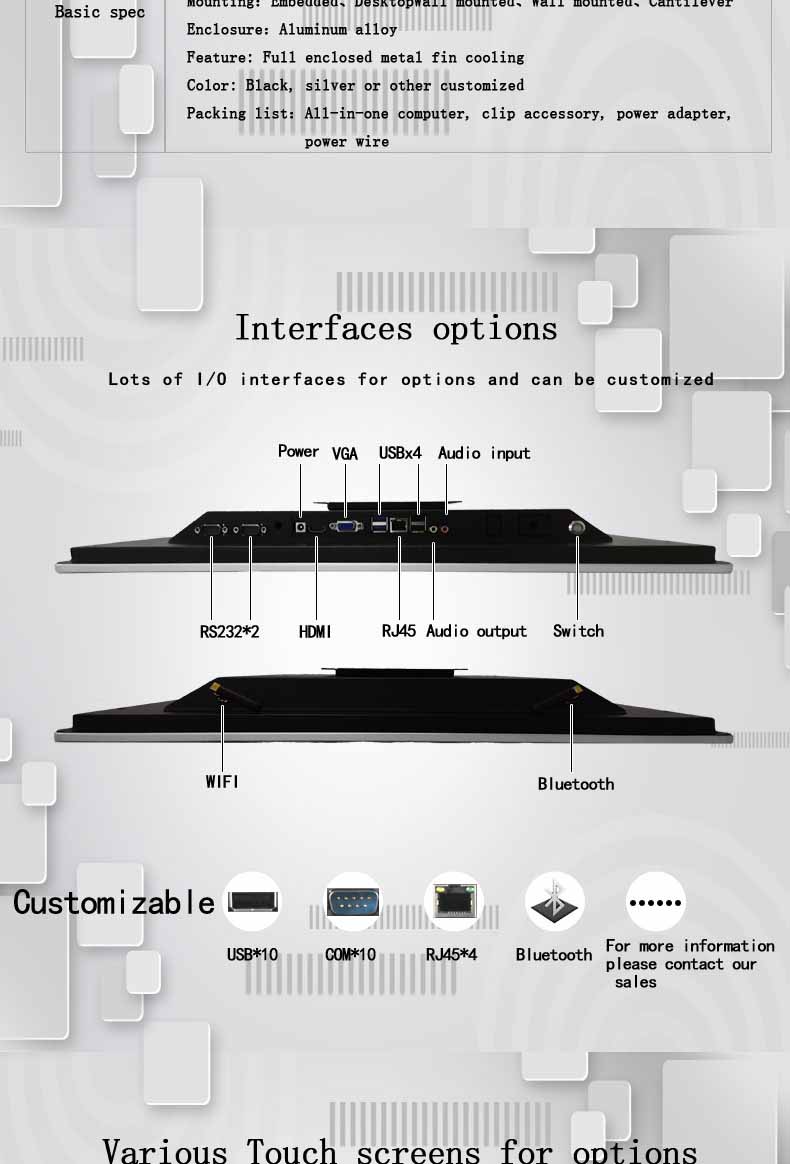

IO |
LAN |
1-way RJ45 network port support wake on LAN and PXE diskless boot function. WiFi |
Audio |
Support audio output (green) Support microphone input (red) |
|
USB |
USB 3.0*1 USB2.0*3 |
|
RS232 | RS232*2 | |
Display interface |
DB15 VGA HDMI |
|
Button |
M12 me |
|
Other | working environment |
Working temperature: -10~60℃; Working humidity: 5%~95% relative temperature no condensation |
storage environment |
Storage temperature: -20~60℃; Storage humidity: 5%~95% relative temperature no condensation |
|
Power on | BIOS supports power-on timed-on and remote power-on/off settings | |
electronic dog | Support watchdog hardware reset function (256 levels 0~255 seconds) | |
As shown below | ||

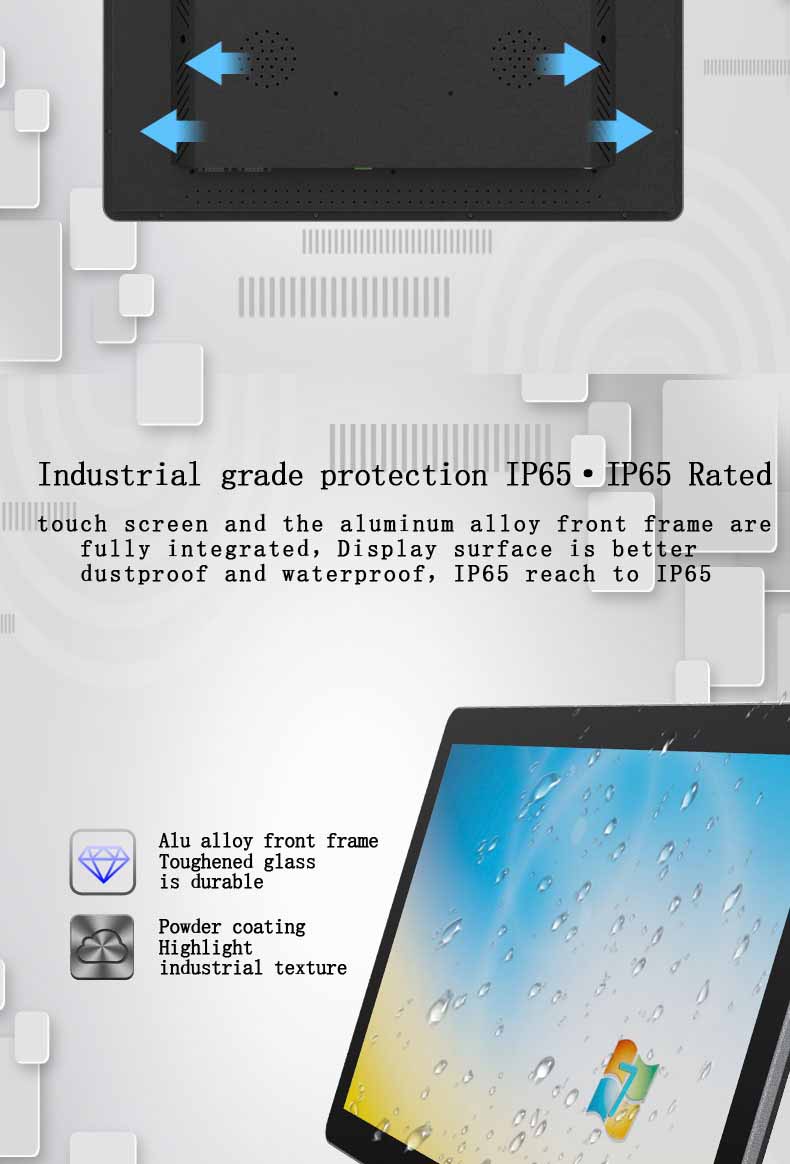

Protection class | Surface IP65 | |
Power supply | DC12V(±10%) | |

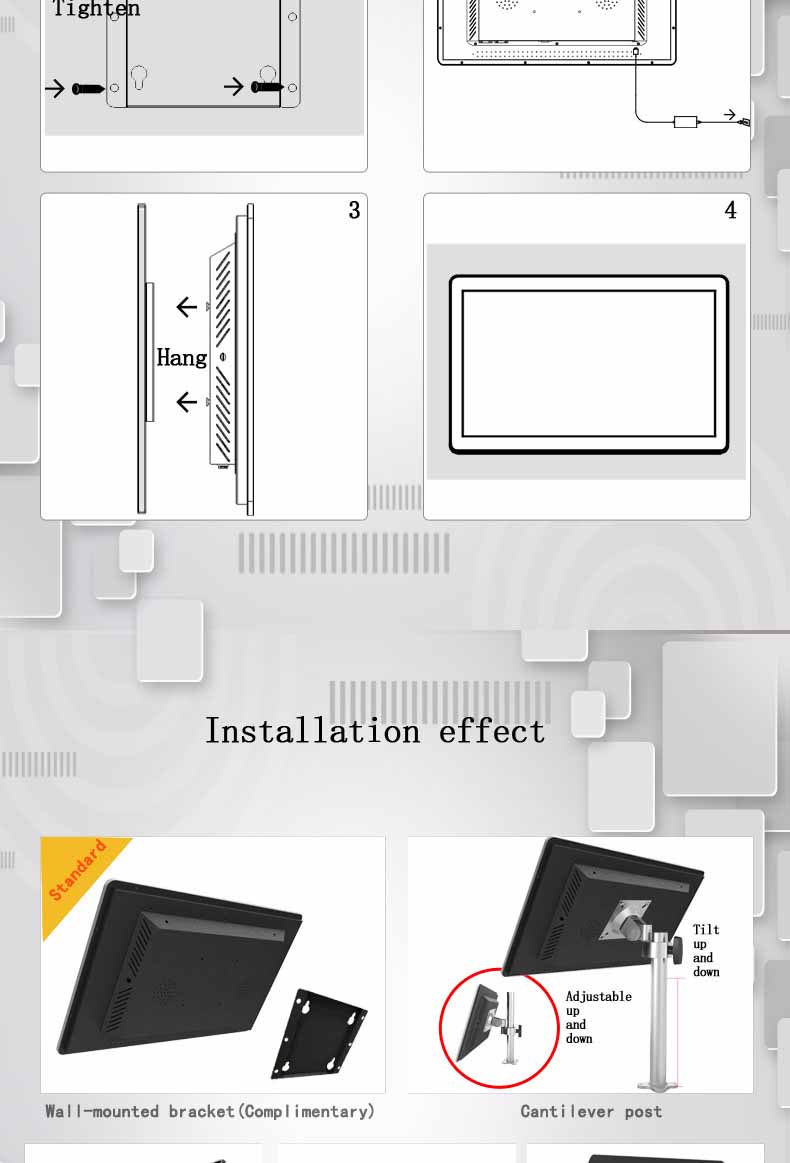

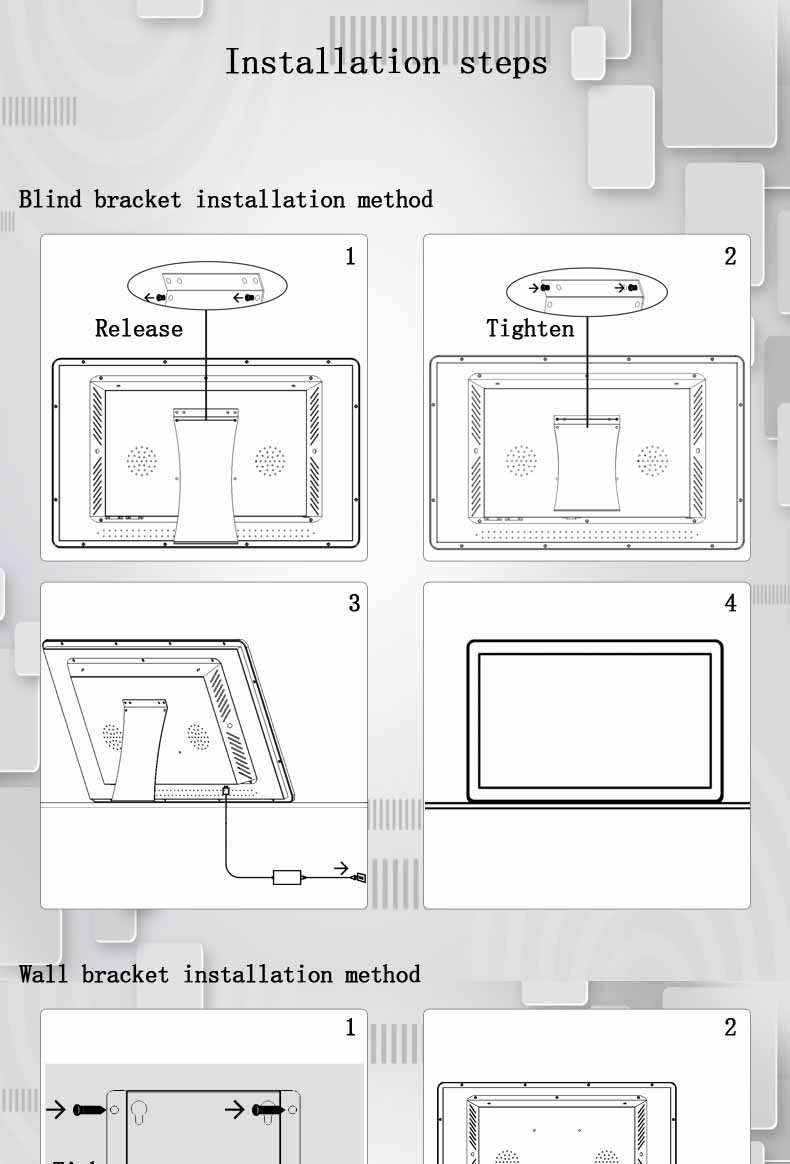

Installation method | wall-mounted desktop | |
Packing List | Machine*1 Power Adapter*1 Power Cord*1 Instruction Manual*1 Certificate*1 |
