Add binocular camera to industrial all-in-one machine
Share
- Product Description
- Product Parameters
- Application
- OEM/ODM
- Download
Application overview
Background introduction: Usually there are not many people in the library but there are too many queues in the library on Saturdays and Sundays right? How to reduce the time in the library? Buying borrowing returning and renewing books seems to be the purpose of queuing readers. Technology changes lives. Sun Technology cooperates with customers to launch smart self-service all-in-one machines.
Of course it is to invest a little more money to systematically automate the library operation process and the machine operation is fast and convenient which we all know. With the existence of the self-service book borrowing and returning system readers do not need to face-to-face manual operations when borrowing returning and renewing books. As long as the library card is issued to the readers the operation process of the self-service book borrowing and returning machine is introduced for the first time for readers. You can do it yourself!
System function requirements:
1. Stable performance
2. Integrated industrial-grade control host
3. It has the functions of self-borrowing returning renewing e-books recording faces and inquiring.
4. Support online payment such as WeChat and Alipay.
5. Support multiple identifications such as face recognition all-in-one card ID card stripe card citizen card fingerprint and so on.
Technical specifications
Product name: Intelligent self-service all-in-one machine
Specifications:
1. Specifications:
1). Number of layers required: no less than 5 layers
2). The size of the host is no less than: 1239*400*1788 (length * thickness * height mm) which can hold no less than 107 books.
3). The size of the auxiliary machine is no less than: 1239*400*1788 (length * thickness * height mm) and can hold no less than 125 books.
4). It is required to configure one host and one auxiliary computer. The factory standard total size is not less than: 2478*400*1788 (length * thickness * height mm) and a total of not less than 232 books can be placed.
2. Parameters:
1). The library card supports mobile phone binding. When registering you can bind your ID card and mobile phone number and authenticate the reader's identity by scanning the QR code and ID card. ).
2). The smart book cabinet adopts bar code (or bar code + magnetic stripe) to identify the self-service loan and return scheme and does not use RFID chips. The machine adopts a more ergonomic operating table which is compatible with high frequency HF/UHF UHF systems to maximize user investment protection.
3). Each main machine can be equipped with 1024 auxiliary machines and the appearance/dimensions of the main machine and auxiliary machines can be modified by customers;
4). The host adopts industrial-grade control host and special LCD touch display system all-steel cabinet cabinet doors partitions laminates 5). Back panel; imported American metal baking varnish has anti-rust anti-magnetic and anti-static functions ；
6). Working voltage AC220V±10% 50HZ power consumption <150W Ambient temperature: -25℃-+65℃ humidity: 10%--95% non-condensing.
7). The whole machine adopts mature technology and solutions in the industry with ingenious design; each book is controlled by independent door opening and closing and the system automatically detects the state of the cabinet door to prevent the book from being lost; when a cabinet fails it can be passed by the administrator The cabinet is disabled in the background which will not affect the normal use of other cabinets.
8). The height of the operating table is required to adapt to the reader's usage habits; it adopts an omnidirectional laser barcode reading system all-stainless steel metal keyboard IC/ID card reader/fingerprint device which can adapt to book barcodes pasted in different positions/directions/angles.
9). It is more convenient to use fingerprints to borrow books. When using fingerprints you can choose to apply for a card automatically to achieve the effect of one machine with multiple functions. You can choose to install a small ticket printer.
10). It can be compatible with various types of library cards such as fingerprint recognition second-generation ID cards campus cards IC/ID cards bank cards ordinary barcode cards etc.; support face recognition to borrow books.
11). Automatically identify and capture the operator's portrait track and analyze the operator's behavior; automatically enter a blacklist for the operator with bad intentions and prohibit the operation of self-service equipment within a set time.
12). All operations on the self-service equipment have complete and detailed log records to ensure the safety of equipment and property.
13). The software supports SIP2/WSEP/NCIP protocol the device can be set to automatically switch on and off time and automatically perform hardware detection every time it is turned on and automatically notify the manager when a failure occurs.
14). The books in the smart library cabinet can be borrowed and returned from the library. There is no need to apply for an additional library card no need to process the original books and use them directly; the equipment has self-service borrowing self-returning and books Functions such as loan renewal information inquiry notification issuance etc.; support offline business processing.
15). The self-service equipment seamlessly connects to various library integrated management systems and the equipment can be remotely monitored configured managed upgraded and maintained through the Wanjia system and notifications are issued; no other management software is required.
3. Other requirements:
1). The entire system adopts Wanxiaotong's sophisticated design which does not require RFID chips or magnetic strips; it directly uses traditional barcode recognition without additional material costs and does not require any processing of the original books.
2). The administrator does not need to organize and arrange the shelves regularly which completely solves the problem of manual sorting categorization and shelves for traditional book self-checking machines.
3). It can be placed outdoors for 24-hour service freeing the librarian from the tedious borrowing and returning operations and the laborious work of sorting and putting on the shelves and truly realize the value of managers.
4). It can realize multiple functions such as self-service loan and return inquiry book rental etc. and maximize the benefits of one machine with multiple functions.
5). It is more convenient to use fingerprints to borrow books. When using fingerprints you can apply for certificates by yourself achieving the effect of one machine with multiple uses. Compatible with fingerprint recognition second-generation ID cards campus cards IC/ID cards bank cards ordinary bar code cards and other types of library cards.
6). Automatically identify and capture the operator's portrait track and analyze the operator's behavior; automatically enter a blacklist for the operator with bad intentions and prohibit the operation of self-service equipment within a set time.
All operations on the self-service equipment have complete and detailed log records to ensure the safety of equipment and property.

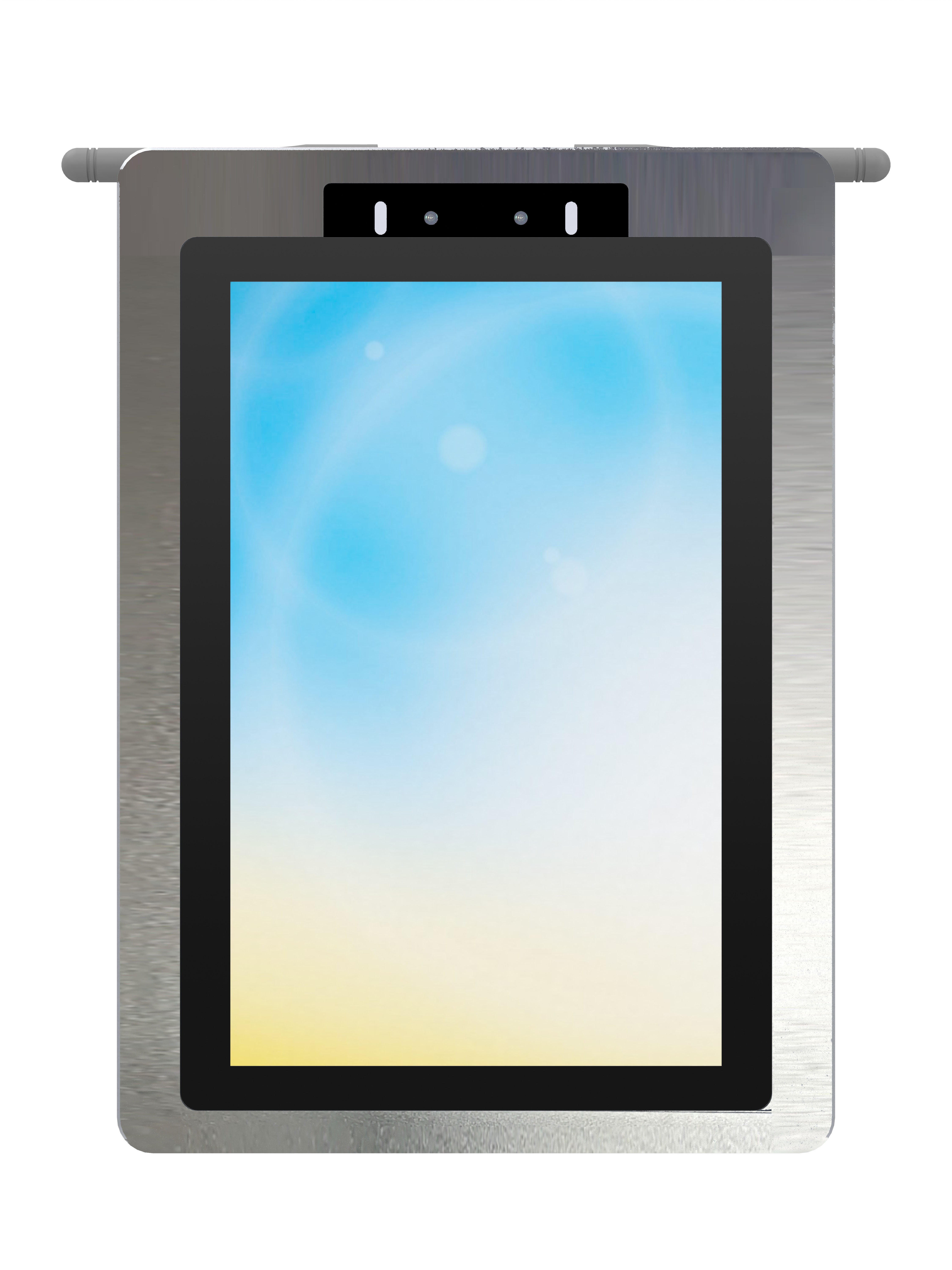

Product Image:
