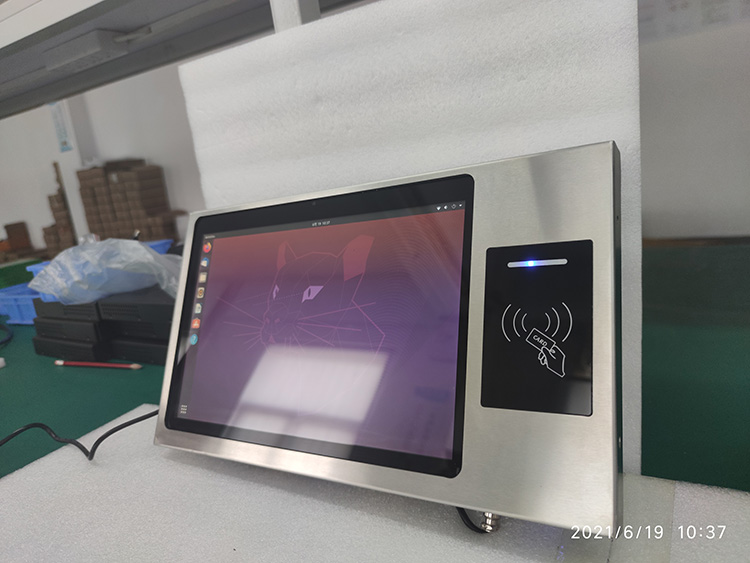

Industrial integrated machine with card reader stainless steel case
Application overview
Background introduction: In the face of nature how insignificant humans appear and how fragile sheet metal appears in the face of the corrosive nature of the sea Sun Sun Technology combines products used by customers to launch a stainless steel industrial all-in-one machine high-strength 304 stainless steel shell acid and alkali corrosion resistance Use in accordance with customer scenarios.
Application industry:
1. Laboratory
2. Ship
3. Industrial automation
4. Medical equipment
5. Environmental monitoring
6. Ocean drilling environment
System function requirements:
1. Stable performance
2. Integrated industrial-grade control host
3. High-strength 304 stainless steel housing resistant to acid and alkali corrosion.
4. Support win7/win8/win10/Linux/Android.
5. IC+ID two-in-one card reader compatible with dual frequency 13.56MHz+125kHz (optional high-frequency card reader)
Technical specifications
Product name: stainless steel industrial all-in-one machine with card reader
Specifications:
yle="border-collapse:collapse;width:795.02pt;" width="1060"> yle="width:120.75pt;" width="161" /> yle="width:674.25pt;" width="899" /> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;">
yle="border-collapse:collapse;width:795.02pt;" width="1060"> yle="width:120.75pt;" width="161" /> yle="width:674.25pt;" width="899" /> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;"> yle="height:13.50pt;">
yle="height:13.50pt;width:120.75pt;" width="161" x:str=""> Color | yle="width:674.25pt;" width="899" x:str=""> Stainless steel primary color |
yle="height:13.50pt;" x:str=""> Material | High-strength 304 stainless steel (316L austenitic stainless steel can be customized) |
yle="height:13.50pt;" x:str=""> CPU | Intel Celeron J1900 quad-core 2.0GHz processor(Optional Intel Core i3/i5/i7/RK3288/RK3399 and other processors) |
yle="height:13.50pt;" x:str=""> Memory | 2G (4G/8G optional) |
yle="height:13.50pt;" x:str=""> Storage | 32G SSD (optional 64G/128G/256G/512G etc.) |
yle="height:121.50pt;width:120.75pt;" width="161" x:str=""> Interface (can be customized into advanced waterproof aviation interface) | RS232*2 |
WiFi*2 | |
Audio input and output*1 | |
Network port*1 | |
USB*4 | |
VGA*1 | |
HDMI*1 | |
Aviation power head*1 | |
Switch*1 | |
yle="height:13.50pt;" x:str=""> Operating system | Win7/win8/win10/Linux/Android |
yle="height:13.50pt;" x:str=""> Working temperature | `-10°C~60°C (wide temperature optional) |
yle="height:13.50pt;" x:str=""> Storage temperature | `-20°C~70°C (wide temperature optional) |
